 Current Electricity and Magnetism

Q.1) Write proper words from the following group of words in the blanks.

[magnetism , 4.5V , 3.0V , Gravitational attraction , Potential difference , potential , higher , lower , 0V ]

a. Water in the waterfall flows from a higher level to the lower level because of gravitational force .

b. In an electric circuit, electron flow from a point of lower potential to the point of higher potential.

c. The difference between the electrostatic potential of the positive end the negative end of an electric cell is the potential difference of the cell .

d. Three electrician of potential difference 1.5 V each have been connected as a battery. the potential difference of the battery will be 4.5 V .

e. an electric current flowing in a wire creates magnetism around the wire.

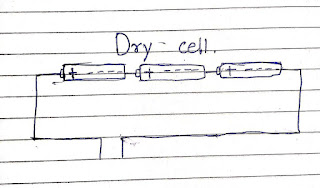

Q.2) A battery is to be formed by joining 3 dry cells them with connecting wires. show how will you connect the wires by drawing a diagram.

Answer-

Q.3) In an electric circuit, a battery and a bulb have been connected and the battery consist of to sell up equal potential then which test will you perform in the order to find out the reason for the bulk not glowing ?

Answer - If you can see the filament of the bulb, check whether it is intact or broken. Check whether the cells are connected in a proper manner:

Or in a wrong way:
If they are connected in a wrong way as shown above, the total potential difference will be 2V + (-2V) = zero.

Q.4) Electrics cells having 2V potential difference each have been connected in the form of a battery. what will be the total potential depress of the battery In both cases .

Answer-

(i) Total potential difference = 2 + 2 + 2 = 6 V

(ii) Total potential difference = 2 + 2 + 2 + 2 = 8 V

Q.5) Describe the construction, working and usefulness of a dry Cell, with the help of a diagram.

Take a lead dry cell & remove its outer coating. Inside you will find a whitish, metal layer. This is the Zinc (Zn) metal layer. This is the negative terminal of the cell. Now, carefully break open this layer. There is another layer inside. An electrolyte is filled between these two layers. The electrolyte contains negatively charged & positively charged ions. There are carries electricity. The electrolyte is a wet pulp of Zinc Chloride (ZnCl₂) & Ammonium Chloride (NH₄Cl). There is a graphite rod at the center of the cell. A paste of Manganese di Oxide (MNO₂) is filled outside the rod. Because electric charge is produced on the two terminals & an electric current flows in the circuit.

Q.6) Describe the construction and working of an electric bell with the help of a diagram.
